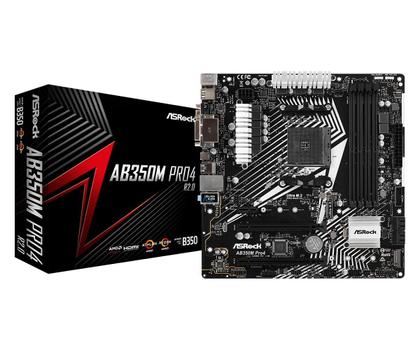

ASROCK AB350M Pro4 R2.0 (AM4) (D)

AB350M Pro4 R2.0

• Supports AMD Socket AM4 A-Series APUs and Ryzen CPUs
• Supports DDR4 3200+ (OC) (Ryzen CPU) / 2400 (A-series APU)
• 1 PCIe 3.0 x16, 1 PCIe 2.0 x16, 1 PCIe 2.0 x1
• AMD Quad CrossFireX™
• Graphics Output:HDMI, DVI-D, D-Sub
• 7.1 CH HD Audio (Realtek ALC892 Audio Codec), ELNA Audio Caps
• 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4), 1 M.2 (SATA3)
• 7 x USB 3.1 Gen1 ( 1 x Type-C, 2x Front, 4 x Rear)
• Realtek Gigabit LAN

• Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen Series CPUs (Summit Ridge, Raven Ridge and Pinnacle Ridge)
• Digi Power design
• 9 Power Phase design

• AMD Promontory B350

• Dual Channel DDR4 Memory Technology
• 4 x DDR4 DIMM Slots
• AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory
• AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory
• AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+(OC) / 2933/2667/2400/2133 non-ECC, un-buffered memory
• AMD 7th Gen A-Series APUs support DDR4 2400/2133 non-ECC, un-buffered memory
• Max. capacity of system memory: 64GB
• 15μ Gold Contact in DIMM Slots

• 128Mb AMI UEFI Legal BIOS with multilingual GUI support
• Supports "Plug and Play"
• ACPI 5.1 compliance wake up events
• Supports jumperfree
• SMBIOS 2.3 support
• DRAM Voltage multi-adjustment

• Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU
• Integrated AMD Radeon™ R-Series Graphics in A-series APU
• DirectX 12, Pixel Shader 5.0
• Shared memory default 2GB. Max Shared memory supports up to 16GB.
• Three graphics output options: D-Sub, DVI-D and HDMI
• Supports Triple Monitor
• Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz
• Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
• Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
• Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
• Supports HDCP 1.4 with DVI-D and HDMI 1.4 Ports
• Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports

• 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
• Premium Blu-ray Audio support
• Supports Surge Protection
• ELNA Audio Caps

• PCIE x1 Gigabit LAN 10/100/1000 Mb/s
• Realtek RTL8111GR
• Supports Wake-On-LAN
• Supports Lightning/ESD Protection
• Supports LAN Cable Detection
• Supports Energy Efficient Ethernet 802.3az
• Supports PXE

• AMD Ryzen series CPUs (Summit Ridge and Pinnacle Ridge)
  • 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)
  • 1 x PCI Express 2.0 x16 Slot (PCIE3: x4 mode)
• AMD 7th A-Series APUs
  • 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode)
  • 1 x PCI Express 2.0 x16 Slot (PCIE3: x4 mode)
• AMD Ryzen series CPUs (Raven Ridge)
  • 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode)
  • 1 x PCI Express 2.0 x16 Slot (PCIE3: x4 mode)
• AMD Athlon series CPUs
  • 1 x PCI Express 3.0 x16 Slot (PCIE2: x4 mode)
  • 1 x PCI Express 2.0 x16 Slot (PCIE3: x4 mode)


• 1 x PCI Express 2.0 x1 Slot
• Supports AMD Quad CrossFireX™ and CrossFireX™

• 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
• 1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with A-Series APU and Athlon 2xxGE series APU)
• 1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module

• 1 x COM Port Header
• 1 x TPM Header
• 1 x Power LED and Speaker Header
• 1 x RGB LED Header
• 1 x AMD Fan LED Header
• 1 x CPU Fan Connector (4-pin)
• 2 x Chassis Fan Connectors (1 x 4-pin, 1 x 3-pin) (Smart Fan Speed Control)
• 1 x 24 pin ATX Power Connector
• 1 x 8 pin 12V Power Connector
• 1 x Front Panel Audio Connector
• 1 x AMD LED Fan USB Header
• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
• 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)

• 1 x PS/2 Mouse Port
• 1 x PS/2 Keyboard Port
• 1 x D-Sub Port
• 1 x DVI-D Port
• 1 x HDMI Port
• 2 x USB 2.0 Ports (Supports ESD Protection)
• 1 x USB 3.1 Gen1 Type-C Port (Supports ESD Protection)
• 4 x USB 3.1 Gen1 Ports (Supports ESD Protection)
• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
• HD Audio Jacks: Line in / Front Speaker / Microphone

• Software
  • ASRock A-Tuning
  • ASRock RGB LED
  • ASRock APP Charger
  • ASRock XFast LAN
• UEFI
  • ASRock Full HD UEFI
  • ASRock Instant Flash
  • ASRock Easy RAID Installer

• Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar

• Quick Installation Guide, Support CD, I/O Shield
• 2 x SATA Data Cables
• 2 x Screws for M.2 Sockets

• CPU/Chassis temperature sensing
• CPU/Chassis Fan Tachometer
• CPU/Chassis Quiet Fan
• CPU/Chassis Fan multi-speed control
• Voltage monitoring: +12V, +5V, +3.3V, Vcore

• Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
• Solid Capacitor design

• Microsoft® Windows® 10 64-bit

• FCC, CE, WHQL
• ErP/EuP ready (ErP/EuP ready power supply is required)
