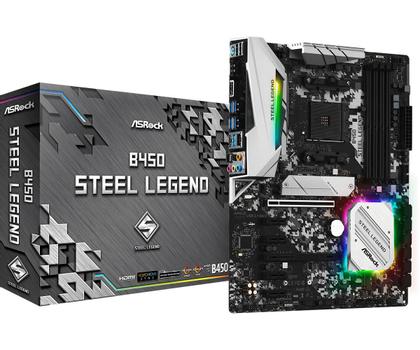

ASROCK Amd B450 Socket Am4 Atx
Varenr.:
B450 STEEL LEGEND
-
Processor-socket
Stik AM4
-
Chipset
AMD B450
-
M.2 Slot
2
-
Hukommelses slots
4 x DIMM, DDR4
-
Maksimal RAM-frekvens
3.533GHz
-
Max hukommelse understøttet
64GB
-
Form Factor
ATX
|
B450 Steel Legend
Features:
- AMD AM4 Socket
- Supports DDR4 3533+ (OC)
- 2 PCIe 3.0 x16, 4 PCIe 2.0 x1
- AMD Quad CrossFireX™
- Graphics Output: DisplayPort, HDMI
- 7.1 CH HD Audio (Realtek ALC892 Audio Codec), Nichicon Fine Gold Series Audio Caps
- 6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4), 1 M.2 (PCIe Gen3 x2 & SATA3)
- 2 USB 3.1 Gen2 (Rear Type-A+C)
- 6 USB 3.1 Gen1 (2 Front, 4 Rear)
- Realtek Gigabit LAN
Specifications:
CPU
- AMD AM4 Socket
- Digi Power design
- 6 Power Phase design
- Supports 105W Water Cooling (Pinnacle Ridge); Supports 95W Water Cooling (Summit Ridge); Supports 65W Water Cooling (Raven Ridge)
Chipset
Memory
- - Dual Channel DDR4 Memory Technology
- - 4 x DDR4 DIMM Slots
- - AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3533+(OC) / 3200(OC) / 2933(OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory
- - AMD Ryzen series CPUs (Summit Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933(OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory
- - AMD Ryzen series CPUs (Raven Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933/2667/2400/2133 non-ECC, un-buffered memory
- - Max. capacity of system memory: 64GB
- - 15μ Gold Contact in DIMM Slots
BIOS
- - 128Mb AMI UEFI Legal BIOS with multilingual GUI support
- - Supports "Plug and Play"
- - ACPI 5.1 compliance wake up events
- - Supports jumperfree
- - SMBIOS 2.3 support
- - DRAM Voltage multi-adjustment
Graphics
- - Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU
- - DirectX 12, Pixel Shader 5.0
- - Shared memory default 2GB. Max Shared memory supports up to 16GB.
- - Dual graphics output: Support HDMI and DisplayPort 1.2 ports by independent display controllers
- - Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz
- - Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
- - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
- - Supports HDCP 1.4 with HDMI 1.4 and DisplayPort 1.2 Ports
- - Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and DisplayPort 1.2 Ports
Audio
- - 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
- - Premium Blu-ray Audio support
- - Supports Surge Protection
- - Nichicon Fine Gold Series Audio Caps
- - PCB Isolate Shielding
- - Individual PCB Layers for R/L Audio Channel
- - Gold Audio Jacks
LAN
- - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- - Realtek RTL8111H
- - Supports Wake-On-LAN
- - Supports Lightning/ESD Protection
- - Supports Energy Efficient Ethernet 802.3az
- - Supports PXE
Slots
- AMD Ryzen series CPUs (Summit Ridge and Pinnacle Ridge)
- - 2 x PCI Express 3.0 x16 Slots (PCIE1: x16 mode; PCIE4: x4 mode)
- AMD Ryzen series CPUs (Raven Ridge)
- - 2 x PCI Express 3.0 x16 Slots (PCIE1: x8 mode; PCIE4: x4 mode) (If you use Athlon 2xxGE series APU, PCIE1 slot will run at x4 mode.)
- AMD Athlon series CPUs
- - 2 x PCI Express 3.0 x16 Slots (PCIE1: x4 mode; PCIE4: x2 mode)
- - 4 x PCI Express 2.0 x1 Slots
- - Supports AMD Quad CrossFireX™ and CrossFireX™
Storage
- - 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
- - 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug
- - 1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon 2xxGE series APU and Raven Ridge 2)
- - 1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)
Connector
- - 1 x COM Port Header
- - 1 x TPM Header
- - 1 x Power LED and Speaker Header
- - 1 x RGB LED Header
- - 1 x Addressable LED Header
- - 1 x AMD Fan LED Header
- - 1 x CPU Fan Connector (4-pin)
- - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
- - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
- - 1 x 24 pin ATX Power Connector
- - 1 x 8 pin 12V Power Connector
- - 1 x Front Panel Audio Connector
- - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
- - 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)
Rear Panel I/O
- - 1 x PS/2 Mouse/Keyboard Port
- - 1 x HDMI Port
- - 1 x DisplayPort 1.2
- - 1 x Optical SPDIF Out Port
- - 2 x USB 2.0 Ports (Supports ESD Protection)
- - 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
- - 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)
- - 4 x USB 3.1 Gen1 Ports (Supports ESD Protection)
- - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
Software and UEFI
- Software
- - ASRock A-Tuning
- - ASRock Polychrome RGB
- - ASRock XFast LAN
- UEFI
- - ASRock Full HD UEFI
- - ASRock Instant Flash
- - ASRock Easy RAID Installer
Support CD
- - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
Accessories
- - Quick Installation Guide, Support CD, I/O Shield
- - 2 x SATA Data Cables
- - 2 x Screws for M.2 Sockets
- - 1 x Standoff for M.2 Socket
Hardware Monitor
- - Temperature Sensing: CPU, MB
- - Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
- - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
- - Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
- - Voltage monitoring: +12V, +5V, +3.3V, Vcore
Form Factor
- - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
OS
- - Microsoft® Windows® 10 64-bit
Certifications
- - FCC, CE
- - ErP/EuP ready (ErP/EuP ready power supply is required)
