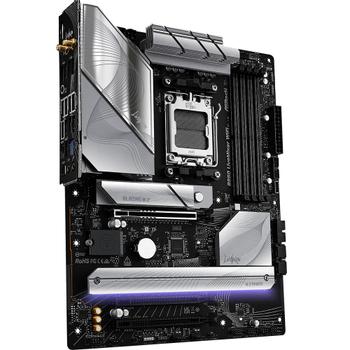

ASROCK B850 LiveMixer WiFi

B850 LiveMixer WiFi

• Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
• 14+2+1 Phase Power Design, 80A Dr.MOS for VCore+SOC+MISC
• 4 x DDR5 DIMMs, Supports Dual Channel, up to 8000+ (OC)
• 1 PCIe 5.0 x16, 2 PCIe 4.0 x16
• Graphics Output Options: 1 HDMI, 1 DisplayPort
• Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio
• 1 Blazing M.2 (PCIe Gen5x4), 2 Hyper M.2 (PCIe Gen4x4), 2 SATA3
• 1 USB 3.2 Gen2x2 Type-C (Front), 1 USB 3.2 Gen2 Type-C (Rear), 1 USB 3.2 Gen2 Type-A (Rear), 8 USB 3.2 Gen1 (4 Rear, 4 Front), 12 USB 2.0 (8 Rear, 4 Front)
• Realtek 2.5G LAN
• 802.11be WiFi 7 +Bluetooth
• Supports M.2 Bottom Heatsink, BIOS Flashback

• Superb Productivity
  • PCIe Gen5 (Graphics, M.2)
  • Dual Channel DDR5
• Rock-Solid Durability
  • 14+2+1 Power Phase, 80A Dr.MOS for VCore+SOC+MISC with Enlarged Heatsink Armor
  • Flexible Integrated I/O Shield
  • 20K Long-lasting Black Caps (high quality and conductive polymer capacitors) for VCore
• Ultrafast Connectivity
  • 2.5G LAN, 802.11be Wi-Fi 7 Module
  • ASRock Lightning Gaming Ports
• EZ Update
  • BIOS Flashback Button
  • ASRock Auto Driver Installer
• EZ Troubleshooter
  • ASRock Post Status Checker

• Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors

• AMD B850

• Dual Channel DDR5 Memory Technology
• 4 x DDR5 DIMM Slots
• Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)
• Max. capacity of system memory: 256GB
• Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

• 256Mb AMI UEFI Legal BIOS with GUI support

• Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
  • 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
  • 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz

• 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
• Impedance Sensing on Rear Out port
• Individual PCB Layers for R/L Audio Channel
• Nahimic Audio

• 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
• Dragon RTL8125BG
• Supports Dragon 2.5G LAN Software
• Smart Auto Adjust Bandwidth Control
• Visual User Friendly UI
• Visual Network Usage Statistics
• Optimized Default Setting for Game, Browser, and Streaming Modes
• User Customized Priority Control

• 802.11be 2x2 Wi-Fi 7 Module
• Supports IEEE 802.11a/b/g/n/ac/ax/axe/be
• Supports 2.4GHz/5GHz/6GHz frequency band
• Supports 160MHz channel bandwidth with 6GHz frequency band
• 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology
• Supports Bluetooth 5.4
• Supports MU-MIMO

• CPU:
  • 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode
• Chipset:
  • 2 x PCIe 4.0 x16 Slots (PCIE2 and PCIE3), support x4 mode
  • 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
• 15μ Gold Contact in VGA PCIe Slot (PCIE1)

• CPU:
  • 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
  • 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
• Chipset:
  • 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode
  • 2 x SATA3 6.0 Gb/s Connectors

• Supports RAID 0 and RAID 1 for SATA storage devices
• Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

• CPU:
  • 1 x USB 3.2 Gen2 Type-C (Rear)
  • 1 x USB 3.2 Gen2 Type-A (Rear)
  • 1 x USB 3.2 Gen1 Type-A (Rear (USB32_1))
• Chipset:
  • 1 x USB 3.2 Gen2x2 Type-C (Front)
  • 7 x USB 3.2 Gen1 Type-A (3 Rear (USB32_234), 4 Front)
  • 12 x USB 2.0 (8 Rear, 4 Front)

• 1 x SPI TPM Header
• 1 x Thermistor Cable Header
• 1 x Power LED and Speaker Header
• 1 x RGB LED Header
• 3 x Addressable LED Headers
• 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)
• 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
• 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)
• 1 x 24 pin ATX Power Connector
• 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
• 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
• 1 x Front Panel Audio Connector
• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
• 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
• 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)

• 2 x Antenna Ports
• 1 x HDMI Port
• 1 x DisplayPort 1.4
• 1 x Optical SPDIF Out Port
• 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
• 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
• 4 x USB 3.2 Gen1 Type-A Ports
• 8 x USB 2.0 Ports
• 1 x RJ-45 LAN Port
• 1 x BIOS Flashback Button
• 1 x Line Out Jack (Gold Audio Jack)
• 1 x Microphone Input Jack (Gold Audio Jack)

• Software
  • ASRock Motherboard Utility (A-Tuning)
  • ASRock Dragon 2.5G LAN Software
  • ASRock Polychrome SYNC
• UEFI
  • ASRock EZ Mode
  • ASRock Full HD UEFI
  • ASRock Auto Driver Installer
  • ASRock Instant Flash

• 2 x SATA Data Cables
• 2 x ASRock WiFi 2.4/5/6 GHz Antennas
• 1 x Thermistor Cable

• ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
• 8 Layer PCB

• Microsoft Windows® 10 64-bit / 11 64-bit

• FCC, CE
• ErP/EuP ready (ErP/EuP ready power supply is required)
