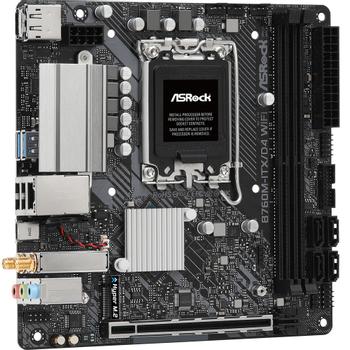

ASROCK MB B760M-ITX/D4 WiFi 1700 M-ITX HDMI/DP DDR4 retail

B760M-ITX/D4 WiFi

• Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
• 5+1+1 Power Phase, Dr.MOS for VCore+GT
• 2 x DDR4 DIMMs, Supports Dual Channel, up to 5333+ (OC)
• 1 PCIe 4.0 x16
• Graphics Output Options: HDMI, DisplayPort
• Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
• 4 SATA3, 1 Hyper M.2 (PCIe Gen4x4)
• 1 USB 3.2 Gen2x2 Type-C (Rear), 4 USB 3.2 Gen1 (2 Rear, 2 Front), 6 USB 2.0 (2 Rear, 4 Front)
• Realtek 1G LAN, 802.11ax (WiFi 6E) + Bluetooth
• Supports ASRock Auto Driver Installer

• Rock-Solid Durability 5+1+1 Power Phase, 50A Dr.MOS for VCore+GT
• Ultrafast Gaming 802.11ax Wi-Fi 6E Module
• EZ Update ASRock Auto Driver Installer

• Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
• Supports Intel® Hybrid Technology
• Supports Intel® Turbo Boost Max 3.0 Technology
• Supports Intel® Thermal Velocity Boost (TVB)
• Supports Intel® Adaptive Boost Technology (ABT)

• Intel® B760

• Dual Channel DDR4 Memory Technology
• 2 x DDR4 DIMM Slots
• Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)
• Supports ECC UDIMM memory modules (operate in non-ECC mode)
• Max. capacity of system memory: 64GB
• Supports Intel® Extreme Memory Profile (XMP) 2.0

• 128Mb AMI UEFI Legal BIOS with GUI support

• Intel® Xe Graphics Architecture (Gen 12)
• 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
• 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

• 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• Nahimic Audio

• Gigabit LAN 10/100/1000 Mb/s
• Realtek RTL8111H

• 802.11ax Wi-Fi 6E Module
• Supports IEEE 802.11a/b/g/n/ac/ax
• Supports Dual-Band 2x2 with extended 6GHz band support
• 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
• Supports Bluetooth + High speed class II
• Supports MU-MIMO

• CPU: 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode
• Chipset: 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)

• CPU: 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
• Chipset: 4 x SATA3 6.0 Gb/s Connectors

• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

• 1 x USB 3.2 Gen2x2 Type-C (Rear)
• 4 x USB 3.2 Gen1 (2 Rear, 2 Front)
• 6 x USB 2.0 (2 Rear, 4 Front)

• 1 x CPU Fan Connector (4-pin)
• 1 x Chassis Fan Connector (4-pin)
• 1 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
• 1 x 24 pin ATX Power Connector
• 1 x 8 pin 12V Power Connector
• 1 x Front Panel Audio Connector
• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
• 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

• 2 x Antenna Ports
• 1 x HDMI Port
• 1 x DisplayPort 1.4
• 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
• 2 x USB 3.2 Gen1 Ports
• 2 x USB 2.0 Ports
• 1 x RJ-45 LAN Port
• HD Audio Jacks: Line in / Front Speaker / Microphone

• Software ASRock Motherboard Utility (A-Tuning)
• UEFI
  • ASRock EZ Mode
  • ASRock Full HD UEFI
  • ASRock My Favorites in UEFI
  • ASRock Auto Driver Installer
  • ASRock Instant Flash
  • ASRock Easy RAID Installer

• 1 x User Manual
• 1 x I/O Shield
• 2 x SATA Data Cables
• 2 x ASRock WiFi 2.4/5/6 GHz Antennas
• 1 x Screw for M.2 Socket

• Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm

• Microsoft Windows® 10 64-bit / 11 64-bit

• FCC, CE
• ErP/EuP ready (ErP/EuP ready power supply is required)
