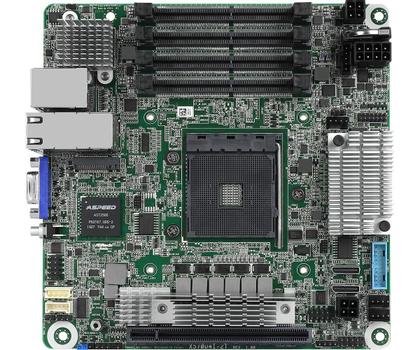

| Physical Status |
| Form Factor |
miniITX |
| Dimensions |
6.7'' x 6.7'' (17.02 cm x17.02 cm) |
| |
| Processor System |
| CPU |
AMD Ryzen™ 3rd Generation Series Processors(Max 105W)
|
| Socket |
AM4 PGA 1331 |
| Chipset |
AMD Premium X570 |
| |
| System Memory |
| Capacity |
4 x DDR4 SO DIMM slots |
| Type |
Dual Channel DDR4 memory technology, Support DDR4 ECC amp; nonECC SO DIMM
Supports DDR4 ECC/UDIMM,up to 2933MHz
One DIMM:
1R DIMM @2933MT/s; 2R/2DR DIMM@2400T/s
Two DIMMs:
(2) 1R DIMM @2400 MT/s; (2) 2R/2DR DIMM@2400MT/s; Max per DIMM size is: 32 GB
|
| Voltage |
1.2V |
| |
| Expansion Slot |
| PCIe 4.0 x 16 |
PCIE7: Gen4x16 link (Matisse)
|
| |
| Storage |
| SATA Controller |
AMD X570:8 x SATA3 by OCulink |
| M.2 slot |
1 (2280, supports PCIe 4.0 x4/SATA3 6.0Gb/s)
|
| |
| Ethernet |
| Interface |
10000/1000 /100 /10 Mbps |
| LAN Controller |
2 x RJ45 10GLAN by Intel® X550AT2
Supports WakeOnLAN
Supports Energy Efficient Ethernet 802.3az
Supports Dual LAN with Teaming function
Supports PXE |
| |
| Management |
| BMC Controller |
ASPEED AST2500 |
| IPMI Dedicated GLAN |
1 x Realtek RTL8211E for dedicated management GLAN |
| Features |
Watch Dog |
| |
| Graphics |
| Controller |
ASPEED AST2500 |
| VRAM |
DDR4 16MB |
| |
| Rear Panel I/O |
| VGA Port |
1 x DSub |
| USB 3.2 Gen2 Port |
2(Gen2) |
| Lan Port |
RJ45:2+1(IPMI)
LAN Ports with LED (ACT/LINK LED and SPEED LED) |
| UID Button/UID LED |
1 |
| |
| Internal Connector |
| COM Header |
1 |
| SATA DOM |
0 |
| M.2 |
1(Mkey,only 2280, Support PCIe 4.0 x4 or SATA3 6.0Gb/s)
|
| OCuLink |
2(4xSATA3 6.0Gb/s/PCIe 4.0x4 for each) |
| Auxiliary Panel Header |
1 (include Caseopen,sys_fault_LED, 2FLANLED) ) |
| TPM Header |
1(13pin) |
| IPMB Header |
1 |
| Buzzer |
N/A |
| Fan Header |
3(4pin Fan header) |
| USB 3.2 (Gen1) Header |
1 (support 2 USB 3.0) |
| USB 2.0 Header |
N/A |
| Front Panel |
1 (RST, PWRBTN, HDDLED, PWRLED) |
| Speaker Header |
1(4pin) |
| SMBUS from BMC |
1 |
| Power Connector |
8pin(DCIN)+4pin(ATX)+4pin(HDD PWR) |
| ME/SPS Recovery |
N/A |
| Clear CMOS |
1 |
| PSU SMB Header |
1 |
| |
| Onboard LED |
| 80 Debug Port LED |
N/A |
| Fan Fail LED |
3 |
| |
System BIOS |
| BIOS Type |
32MB AMI UEFI Legal BIOS |
| BIOS Features |
Plug and Play (PnP)
ACPI 2.0 Compliance Wake Up Events
SMBIOS 2.8.0 Support
ASRock Rack Instant Flash |
| |
| Hardware Monitor |
| Temperature |
CPU/DDR temperature sensing
MB/Card side temperature sensing |
| Fan |
Fan Tachometer
Quiet Fan (Allow Chassis Fan Speed AutoAdjust by CPU Temperature)
Fan MultiSpeed Control |
| Voltage |
Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM,1.05V_PCH, +BAT, 3VSB, 5VSB |
| |
| Environment |
| Temperature |
Operation temperature: 10°C ~ 35°C / Non operation temperature: 40°C ~ 70°C |
